Maisto pramonės dulkių surinkėjas

Didelio našumo dulkių surinkėjas

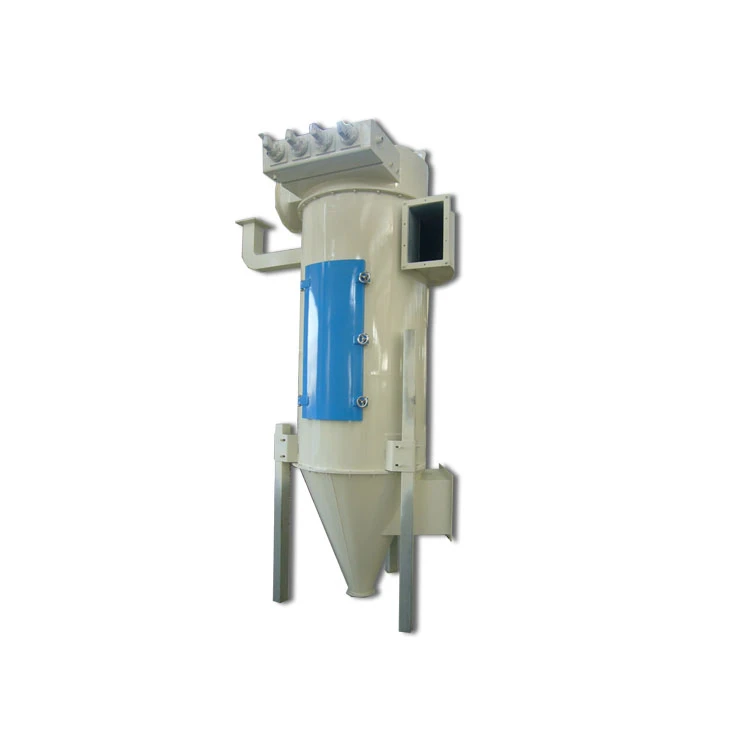

TBLMY aukšto slėgio purkštuko filtro dulkių surinkėjas

Features: This model have flat filtering envelopes, compact structure and small footprint.

Application: Dust collection on conveying equipment.

Darbinis oro {{0}}slėgis: 0,2–0,4 MPa

Filtravimo sritis (pasirinktinai): 5,6 m², 10.5m², 17.5m², 25.2m², 36.4m², 53.2m², 75.6m², 109.2m².

Working conditions

This dust collector is not applicable for treating dust-containing air running under high temperature and high humidity as well as corrosive environment;

This machine is equipped with needled felt terylen flannelette as filter material, the suitable temperature of which is lower than 120 degree ;

Normal working air{{0}}pressure of the dust collector shall be ensured at 0.5 MPa-0.7MPa during dust removal, if used in special case, the working pressure can be less than 0.5 MPa;

Input voltage of the impulse control instrument shall be AC220 (1±5 percent ) V,50Hz, under a working environment with temperature of -10 degree -50 degree ;

Techniniai parametrai
